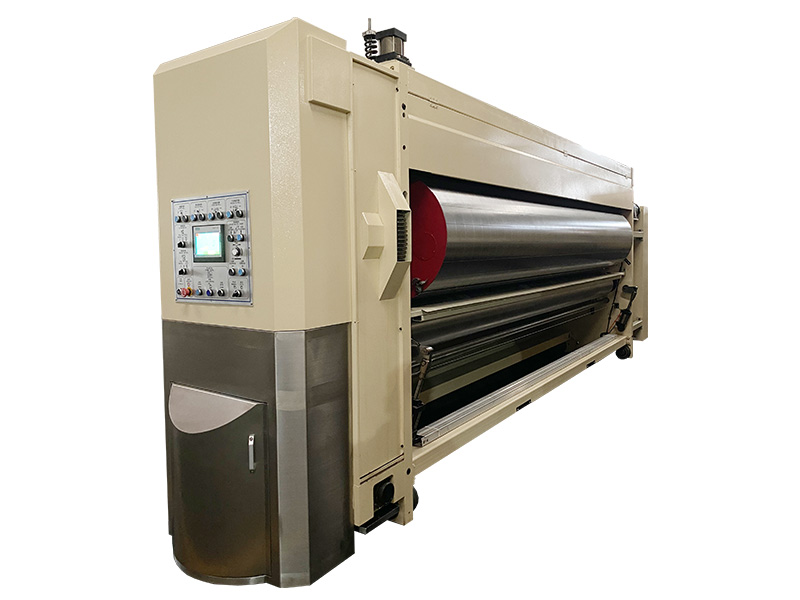

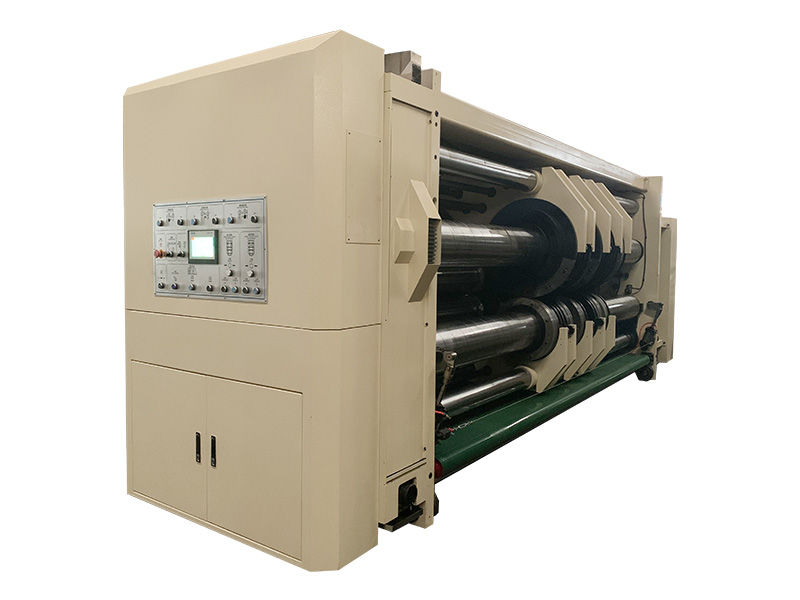

Two Colors Flexo Printer Slotter Die-cutter Machine
2 Color Flexo Printing Machine Features：
·This automatic carton box making machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.
·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.
·Lead edge feeder or kick feeder is for choice.
Automatic Carton Printer Specification：
Dimension(LxWxH)
T
Data/Model
1600*3600
2200*3600
2200*4000
2200*4600
2200*5300
2600*3600
2600*4000
2600*4600
2600*5300
Printing Speed(m/min)
160
160
160
160
160
160
160
160
160
Max.Machine Speed(pcs/min)
120
100
100
100
80
80
80
80
80
Max.Feeding Size(mm)
1570x3600
2100x3600
2100x4000
2100x4600
2100x5300
2500x3600
2500x4000
2500x4600
2500x5300
Min.Feeding Size(mm)
450x760
550x900
550x900
550x900
550x900
650x900
650x900
650x900
650x900
Max. Printing Area(mm)
1540x3600
2080x3600
2080x4000
2080x4600
2080x5300
2480x3600
2480x4000
2480x4600
2480x5300
Thickness of Printing Plate(mm)
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
Min. Panel(mm) Slot Type L.
280x100x280x100
330x110x330x110
330x110x330x110
330x110x330x110
330x110x330x110
360x110x360x110
360x110x360x110
360x110x360x110
360x110x360x110
Max. Slotting Depth(mm)
560
750
750
750
750
850
850
850
850
Max. Thickness of Sheet(mm)
15
15
15
15
15
15
15
15
15
19852x6670x2700
21173x6670x2800
21173x7070x2800
21173x7670x2800
21173x8370x2800
22495x6670x3000
22495x7070x3000
22495x7670x3000
22495x8370x3000
Automatic Carton Printing Machine Advantages:
1.CNC control system (Intelligent Control)
2.Environmental Protection and Energy Saving, use washable ink;
3.Apply to box for big household appliances such as refrigerator, air-conditioner, and heavy industrial box, such as motorbike, auto spare parts.
4.Able to print and make honeycomb box.
Our Research and Development:
KESHENGLONG has a perfect Research and Development system, and owns a high level R&D team, leading capability of independent innovation, and complete producing, processing and manufacturing capability. We has Full computer gantry boring and milling machining center, CNC pentahedron boring and milling machine, 5 meter grinding machine etc., more than 200 set of processing equipment.
