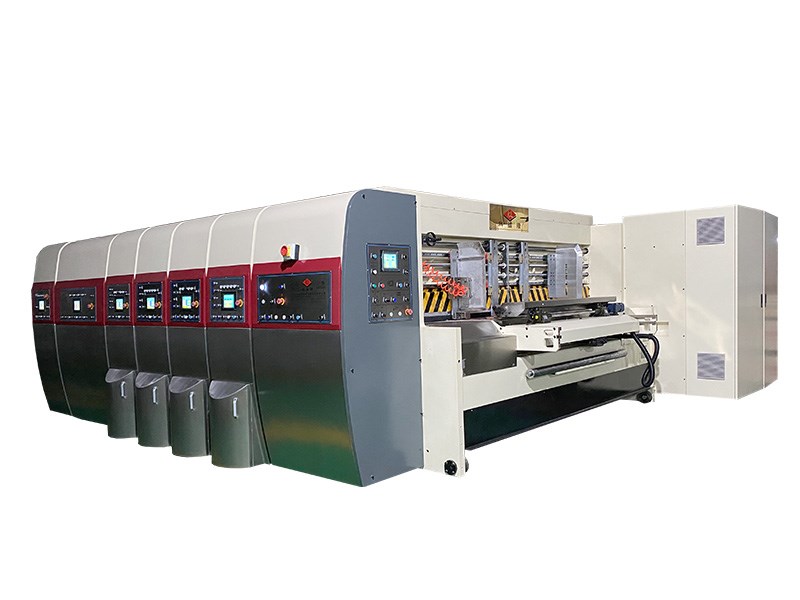

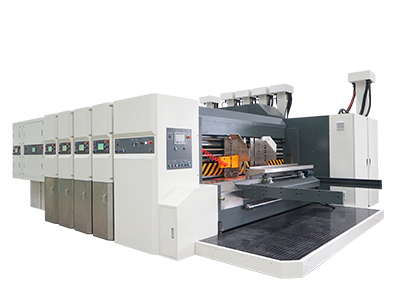

4 Colour Flexo Printing Slotting Rotary Die Cutting
Carton PrintingFeatures：
·Thiscarton printing slotting die-cutting machineis designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.
·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·All gaps between cylinders and rollers are computerized and/or motorized control.
·Vacuum transfer system used in all printing sections.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.
·Able to facilitate the production management.
Packing Box Making Machine Specification：
|
Data/Model |
900x2000 | 900x2400 | 1200x2000 | 1200x2400 | 1200x2800 | 1400x2400 | 1400x2800 | 1600x2800 | 1600x3200 |
|
Printing Speed(m/min) |
200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
|
Max Machine Speed(pcs/min) |
300 | 300 | 250 | 250 | 220 | 220 | 200 | 200 | 180 |
|
Max Feeding Size(mm) |
880x2000 | 880x2400 | 1180x2000 | 1180x2400 | 1180x2800 | 1380x2400 | 1380x2800 | 1540x2800 | 1570x3200 |
|
Min Feeding Size(mm) |
280x640 |
280x640 |
320x700 |
320x700 |
320x700 |
350x700 | 350x700 | 420x760 |
420x760 |
|
Skip Feeding(mm) |
1100x2000 | 1100x2400 | 1500x2000 | 1500x2400 | 1500x2800 | 1700x2400 | 1700x2800 | 1900x2800 | 1900x3200 |
|
Max Printing Area(mm) |
800x2000 | 800x2400 | 1150x2000 | 1150x2400 | 1150x2800 | 1320x2400 | 1320x2800 | 1540x2800 | 1540x3200 |
|
Thickness of Printing Plate(mm) |
7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
|
Min Panel(mm) Slot Type L. |
240x80x240x80 |
240x80x240x80 |
260x90x260x90 |
260x90x260x90 |
260x90x260x90 |
260x90x260x90 |
260x90x260x90 |
280x100x280x100 |
280x100x280x100 |
|
Max Slotting Depth(mm) |
250 | 250 | 320 | 320 | 320 | 320 | 320 | 560 | 560 |
|
Max Thickness of Sheet(mm) |
8 | 8 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
|
Dimension(LxWxH)
T
F
|
T:11659X4240X3200 F:12079x4240x3200 |
T:11659X4800X3200 F:12079x4800x3200 |
T:13015X4400X3500 F:13550x4400x3500 |
T:13015X4800X3500
F:13550x4800x3500 |
T:13015X5220X3500 F:13550x5220x3500 |
T:13570X4830X3500 F:14028x4820x3500 |
T:13570X5220X3500 F:14028x5220x3500 |
T:14021X5220X3500 F:14071x5220x3500 |
T:14021X5719X3500 F:14071x5719x3500 |
Casemaker MachinesAdvantages:
1.CNC control system (Intelligent Control)
2.Environmental Protection and Energy Saving, use washable ink;
3.Printing accuracy can be ±0.15-±0.3mm;
4.Printing plate can be 90-130LPI;
5.Varnishing and die-cutting unit are available.
FAQ:
Q1: What's the MOQ?
Re: The MOQ of machinery is 1 set.
Q2: What's delivery time?
Re: The general delivery time is 3~5months after order confirmed, it depends on the order quantity.
Q3: Can you send the video to show how the machine works?
Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.
Q4: What's the payment method?
Re: We accept T/T andL/C payment.
