Specialized in Manufacturing Corrugated Carton Printing Machine & Solutions Since 1995

Guangzhou Keshenglong Carton Packing Machine Co.,Ltd.

Flexo Folder Gluer Manufacturer in China

Flexo folder gluer for corrugated carton box printing, high efficiency and high definition!
  • Item NO.:

    k6
  • Lead Time:

    3-5 months
  • Product Orgin:

    China
  • Brand:

    Keshenglong
  • Shipping Port:

    Guangzhou/Shenzhen
  • Payment:

    L/C, T/T
Inquiry now
Details

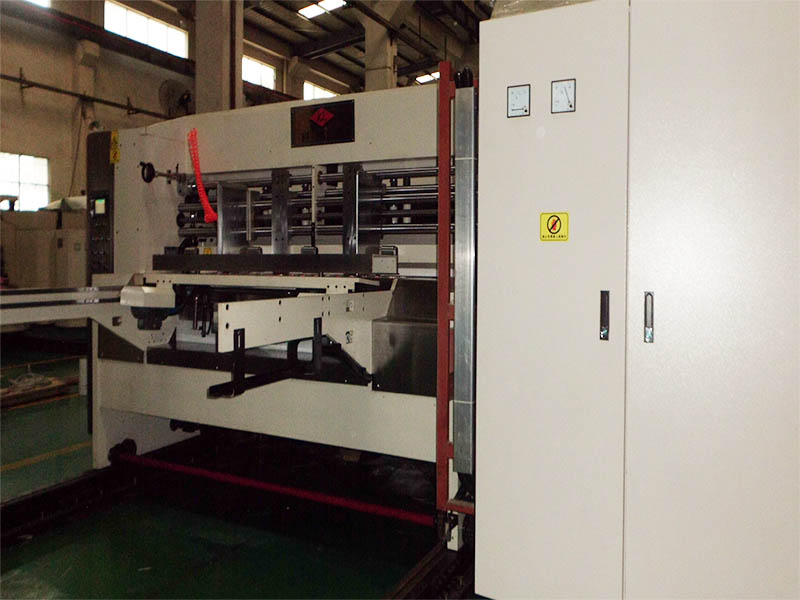

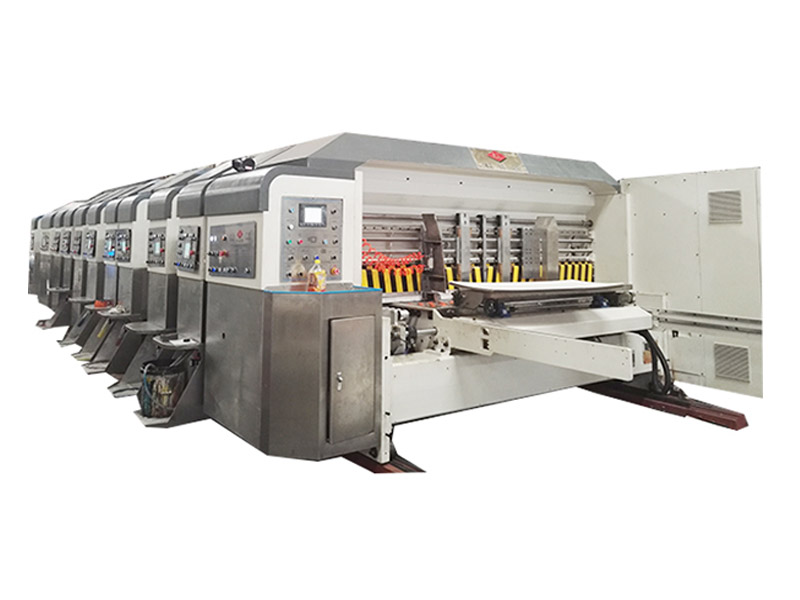

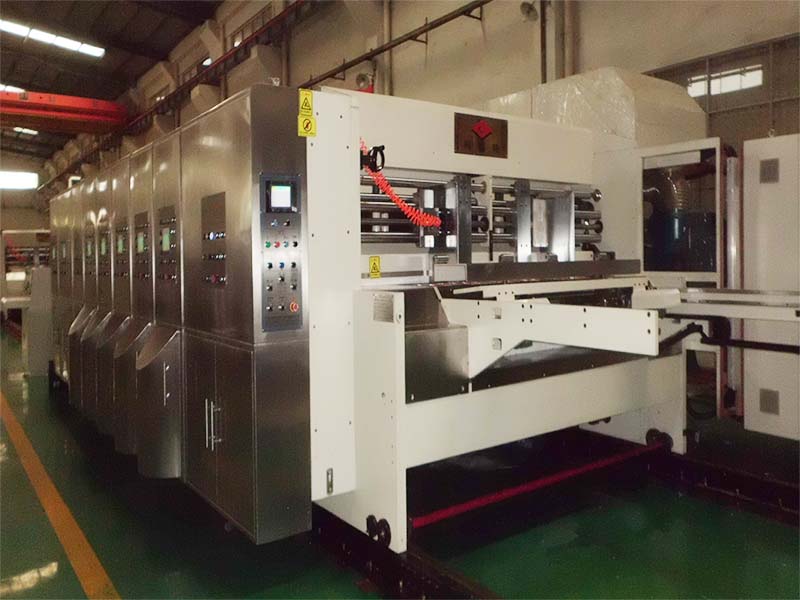

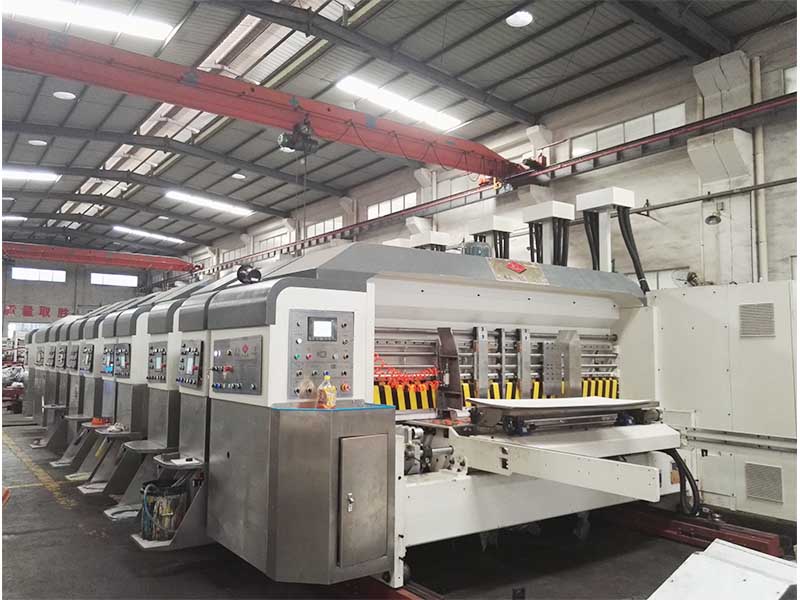

Flexo Folder Gluer Manufacturer in China


Flexo Printer Slotter Folder Gluer Features:

·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto   control and quick order shift.

·Auto high quality materials and parts.

·Well hardened and ground transmission gears, hardness more than 60(HRC).

·Auto zero return and auto reset.

·All gaps between cylinders and rollers are computerized and/or motorized control.

·Vacuum transfer system used in all printing sections.

·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

·All cylinders and rollers are chromed plated for ideal hardness.

·PLC control system with touch screen control.

·Able to save order,speed up the order shift.

·All electronic and pneumatic components are with European standards.

·Able to facilitate the production management.


Full Automatic Flexo Folder Gluer Specification:

Data/Model
900x2000 900x2400 1200x2000 1200x2400 1200x2800 1400x2400 1400x2800 1600x2800 1600x3200
Printing Speed(m/min)
200 200 200 200 200 200 200 200 200
Max Machine Speed(pcs/min)
300 300 250 250 220 220 200 200 180
Max Feeding Size(mm)
880x2000 880x2400 1180x2000 1180x2400 1180x2800 1380x2400 1380x2800 1540x2800 1570x3200
Min Feeding Size(mm)
280x640 280x640
320x700 320x700
320x700
350x700 350x700 420x760 420x760
Skip Feeding(mm)
1100x2000 1100x2400 1500x2000 1500x2400 1500x2800 1700x2400 1700x2800 1900x2800 1900x3200
Max Printing Area(mm)
800x2000 800x2400 1150x2000 1150x2400 1150x2800 1320x2400 1320x2800 1540x2800 1540x3200
Thickness of Printing Plate(mm)
7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2
Min Panel(mm) Slot Type L.
240x80x240x80 240x80x240x80
260x90x260x90
260x90x260x90
260x90x260x90
260x90x260x90
260x90x260x90
280x100x280x100
280x100x280x100
Max Slotting Depth(mm)
250 250 320 320 320 320 320 560 560
Max Thickness of Sheet(mm)
8 8 12 12 12 12 12 12 12
Dimension(LxWxH)
T
F

T:11659X4240X3200

F:12079x4240x3200

T:11659X4800X3200

F:12079x4800x3200


T:13015X4400X3500

F:13550x4400x3500


T:13015X4800X3500

F:13550x4800x3500


T:13015X5220X3500

F:13550x5220x3500


T:13570X4830X3500

F:14028x4820x3500


T:13570X5220X3500

F:14028x5220x3500


T:14021X5220X3500

F:14071x5220x3500


T:14021X5719X3500

F:14071x5719x3500



2 Colors Flexo Folder Gluer Advantages:

1.CNC control system (Intelligent Control)

2.Environmental Protection and Energy Saving, use washable ink;

3.Printing accuracy can be ±0.15-±0.3mm;

4.Printing plate can be 90-130LPI;

5.Varnishing and die-cutting unit are available.


Our Company:

Guangzhou Keshenglong Carton Packing Machine Co.,Ltd., is one of the leading manufacturers in China, specialized in manufacturing of carton printing and packaging machinery. And our products have been exported to more than 70 countries.




Hot Products
Flexographic Printing Machine Types High Speed Flexographic Printing Machine of Model K7
Flexo printing machine cardboard for printing 1-7 colors, and Model 7 occupies the advantage of both top & bottom printing at one time.

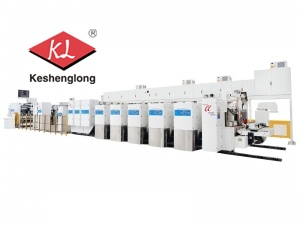

6 color flexo printing machine Shinko Super Alpha Corrugated Board Flexo Printing Machine
Corrugated flexo printing machine, your best choice in China, Keshenglong; your best choice in the world, Shinko in Japan. Full Servo Motor Control, Fixed Structure
Corrugated Printing Machine Price 2 Color Flexo Printing Machine with Die Cutter
New style Model KLS multicolor machine for printing of corrugated carton box, reliable experience.

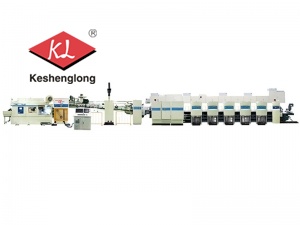

Automatic Carton Priner Inline Folder Gluer Prices Corrugated Flexo Printing Machine Made in China
China printing machine inline with folding gluing machine, Shinko Super Alpha meets with your needs for the max mechanic speed 350 pieces per minute.

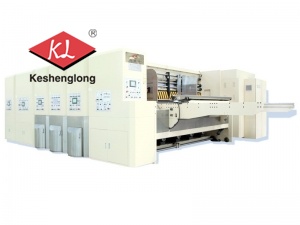

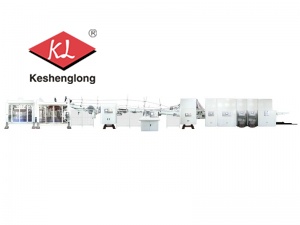

Jumbo Carton Box Maker Two Colors Flexo Printer Slotter Die-cutter Machine
Want to make large size carton box ? Our K1 Jumbo machine help you achieve the production goal!

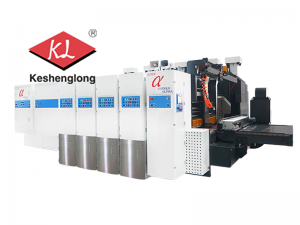

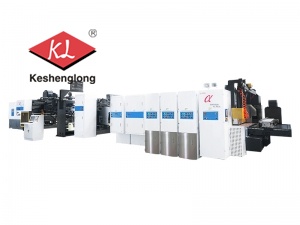

4 Color Flexo Printing Machine Manufacturers Shinko Super Alpha Four Colors Printer Slotter and Die-cutter Machine
