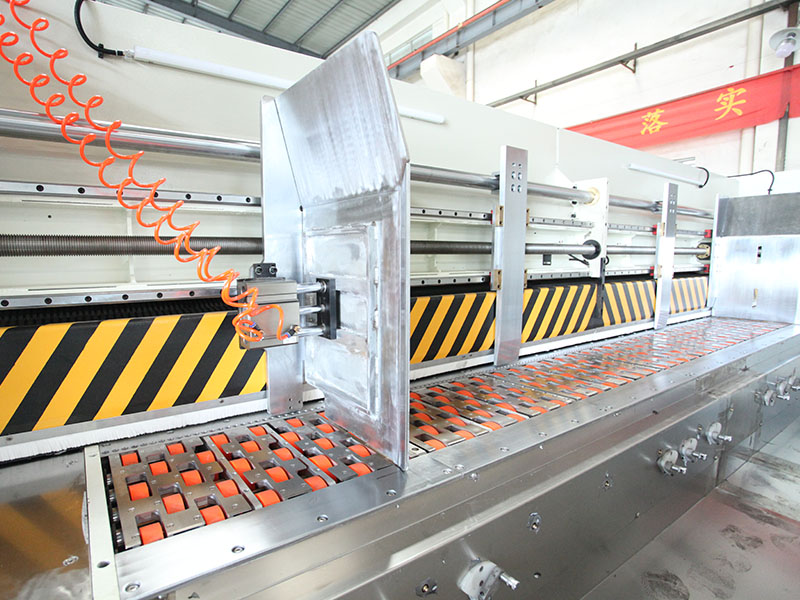

2 Color Flexo Printing Slotting Rotary Die Cutting
Lead Edge Printing Machine Features：
·This packaging printing machine is designed and made to high quality and safety standard, with the advantages of high speed, auto contrl and quick shift.
·Adopt high quality material and parts. All electronic components comform to CE standard, and safety standard can equalo European.
·Well hardened and ground transmission gear, hardness >60 HRC.
·Auto aero return and suto reset.
·Use expansion sets tight link to reduce abrasion of the shaft, keep precision of the machine for longer time.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save orders, speed up the order shift.

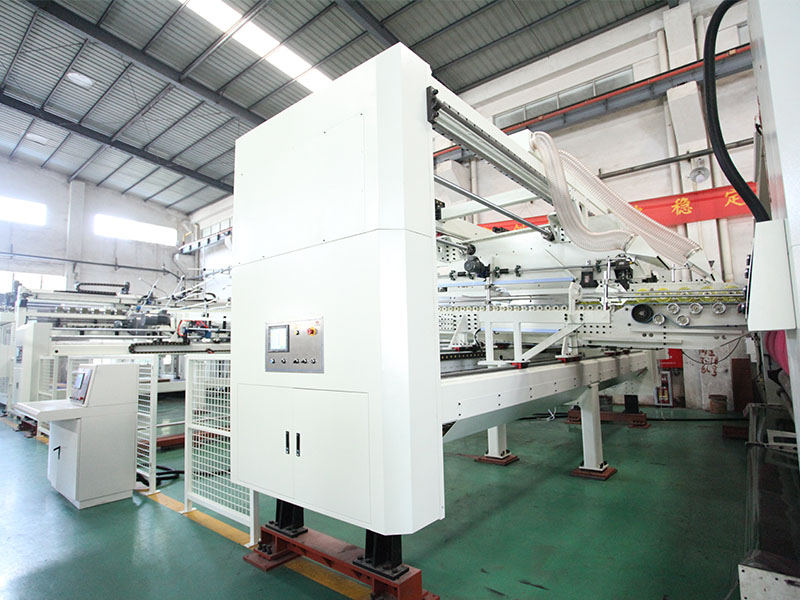

·Automatic Inline Flexo Folder Gluer for bottom printing (Bottom Printing Up Folding) is optional.
Auto Flexo Printing Machine Specification：
| Data/Model | 1600*3600 | 2200*3600 | 2200*4000 | 2200*4600 | 2200*5300 | 2600*3600 | 2600*4000 | 2600*4600 | 2600*5300 |
| Printing Speed(m/min) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Max.Machine Speed(pcs/min) | 120 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 80 |
| Max.Feeding Size(mm) | 1570x3600 | 2100x3600 | 2100x4000 | 2100x4600 | 2100x5300 | 2500x3600 | 2500x4000 | 2500x4600 | 2500x5300 |
| Min.Feeding Size(mm) | 450x760 | 550x900 | 550x900 | 550x900 | 550x900 | 650x900 | 650x900 | 650x900 | 650x900 |
| Max. Printing Area(mm) | 1540x3600 | 2080x3600 | 2080x4000 | 2080x4600 | 2080x5300 | 2480x3600 | 2480x4000 | 2480x4600 | 2480x5300 |
| Thickness of Printing Plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Min. Panel(mm) Slot Type L. | 280x100x280x100 | 330x110x330x110 | 330x110x330x110 | 330x110x330x110 | 330x110x330x110 | 360x110x360x110 | 360x110x360x110 | 360x110x360x110 | 360x110x360x110 |
| Max. Slotting Depth(mm) | 560 | 750 | 750 | 750 | 750 | 850 | 850 | 850 | 850 |
| Max. Thickness of Sheet(mm) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
|
Dimension(LxWxH) |
19852x6670x2700 | 21173x6670x2800 | 21173x7070x2800 | 21173x7670x2800 | 21173x8370x2800 | 22495x6670x3000 | 22495x7070x3000 | 22495x7670x3000 |
22495x8370x3000 |
Cardboard Box Maker Machine Advantages:
1.CNC control system (Intelligent Control)
2.Environmental Protection and Energy Saving, use washable ink;
3.Apply to box for big household appliances such as refrigerator, air-conditioner, and heavy industrial box, such as motorbike, auto spare parts.
4.Able to print and make honeycomb box.
Why Choose Us?
1.More than 23 years professional experience in designing and manufacturing.
2.Accept customized design according to customers' requirements.
3.High levels of performance,quality and reliability of all equipment.
4.Reliable quality proven by customers both at home and abroad.
5.Reasonable prices.
6.Promptness in both equipment delivery and technical support.
