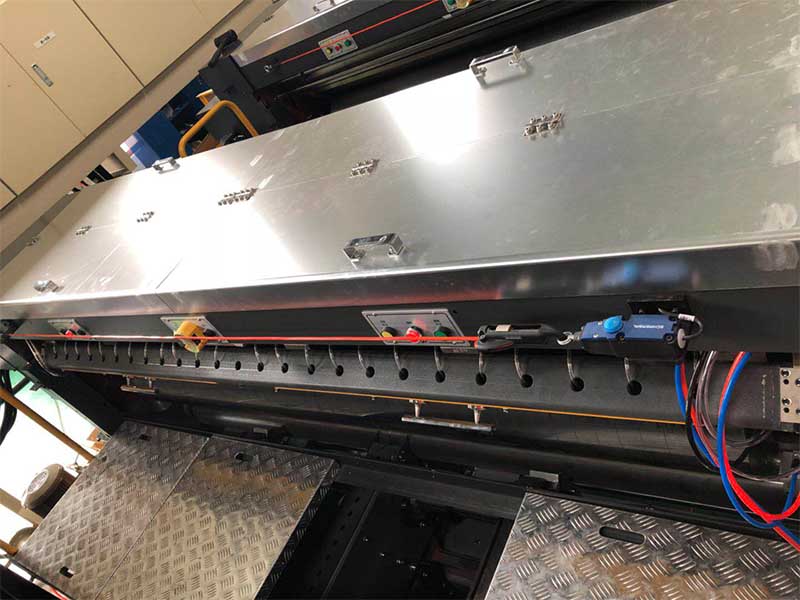

Automatic Corrugated Cardboard Box Flexo Folder Gluer Machine
Jumbo Flexo Folder Gluer Characteristic:
1.Fast cleaning up ink system within 3 minutes。
2.Low residual ink.
3.Fast hanging plate within 15 seconds
4.High productivity for small orders with setup times within 2 minutes.
5.Corrugated carton flexo printing machine running cost is reduced by energy conservation in electric power 170KVA
6.Each unit is individually driven by a servomotor.
7.High folding accuracy that meets every customer’s demands.
|
Unit |
Equipment |
|
Feeding Unit
|
Lead edge feeder |
|
Auto return to “0” position |
|
|
Back guide auto |
|
|
Lead edge auto set |
|
|
Trial sheet running device |
|
|
Paper dust remover (Shinko’s original design) |
|
|
Sheet jam detector |
|
|
Batch counter |
|
|
Side jogger |
|
|
Lead edge table grating-less mechanism |
|
|
Carrying |
Center belt suction |
|
Printer
|
Print cylinder lifting device |
|
Print cylinder motorized lateral adjustment |
|
|
Print cylinder auto return to “ 0 ” position |
|
|
Shinko inking system |
|
|
Ink flow monitoring buzzer |
|
|
Ceramic anilox roll |
|
|
Automatic ink touch |
|
|
Automatic stereo film winder |
|
|
Ink bath teflon coating |
|
|
Chambered doctor blade system |
|
|

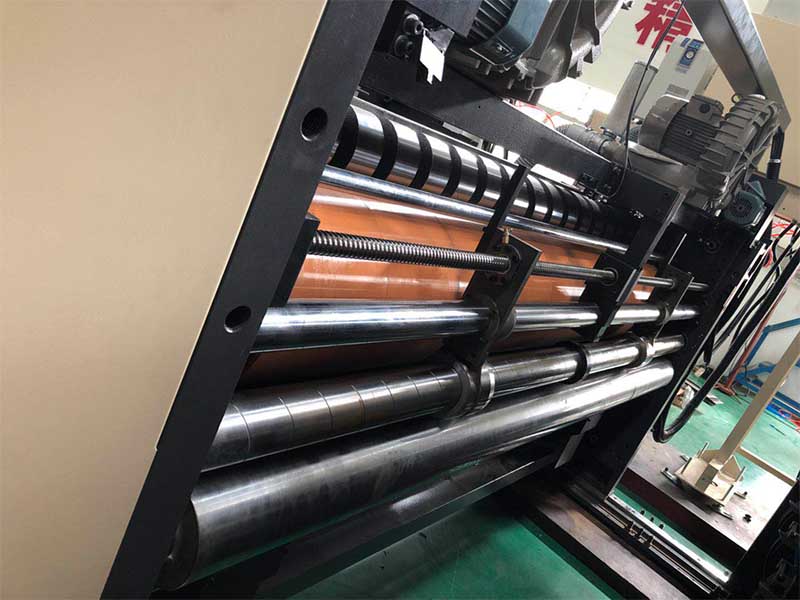

Slotter Unit
|
Double slotter system |
|
Crush rolls |
|
|
1:1 creasing rolls |
|
|
Automatic setting of yoke heads |
|
|
Automatic RSC set up with a selection of regular glue flap or extended glue flap |
|
|
Glue joint waste remover (Glue joint waste is removed by a rotary brush and fan system, delivering clean product to the folding section.) |
|
|
Die-cutting Unit |
“One touch” hand hole cutter |
|
Polyurethane anvil |
|
|
Running register auto set |
|
|
Forming Unit |
Forming rollers |
|
Guide Bars |
|
|
Upper suction belt |
|
|
Underneath belt with suction function( with variable speed) |
|
|
Select device to change clearance based on flutes |
|
|
Double tanks |
|
|
Glue roll |
|
|
Counter |
One-stage counter |
|
Squaring Unit
|
Squaring hopper |
|
Holding fan |
|
|
CNC
|
Touch panel |
|
Main control panel |
|
|
Unversal power supply |
|
|
Teaching function |
3 Colour Flexo Folder Gluer Specification:
Maximum machine speed：275 sheet/min
Maximum sheet size (RSC)：1210×2700mm
Minimum sheet size (RSC)：290×755mm
Minimum gluer bridge size：360mm
Maximum sheet size (no folding)：1210×1600mm
Minimum sheet size (no folding)：290×650mm
Maximum width of sheet not folded：2000mm
Maximum printing area：1100×2600mm
Maximum film length：1210mm
Guide joint width：35mm
Minimum box height：50mm
Required power：120KW
Approx. Weight: 82,000KG
Carton Box Flexo Folder Gluer Advantages:
1.CNC control system. (Intelligent Control)
2.Independent Servo motor Drive in Each Unit. (High Speed and Energy Saving)
3.Fast Change Order within Two Minutes, Fast Change Printing Plate within 15 Seconds. Able to change 40-150 orders each day. (High Efficiency)
4.Fast Clean ink within three minutes, lower residual ink.
Packaging details:
Package/piling: Good hard steel pallet strengthen and fixed, packing with transparent plastic-film, class and numbering, cannot extrusion and stacker.
Port: Guangzhou/Shenzhen
