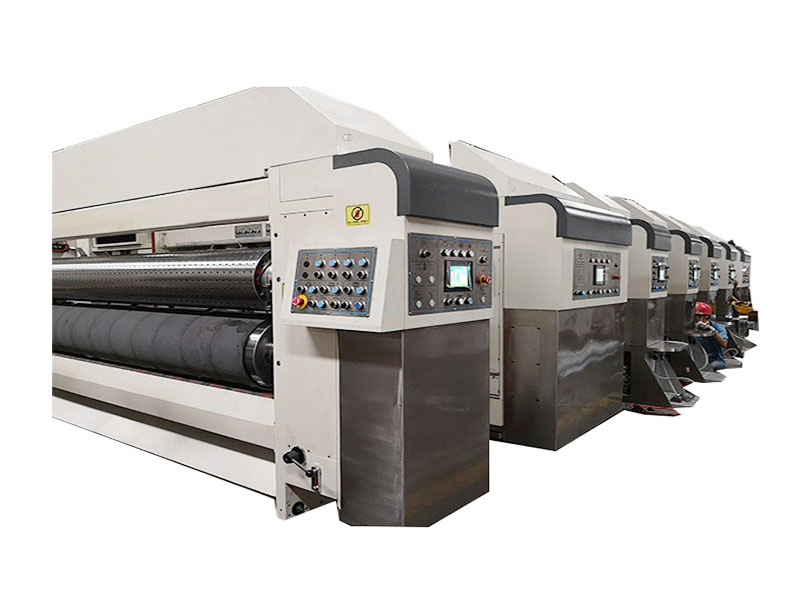

Corrugated Printing Machine China Factory
Corrugated Cardboard Printing Machines Features：
·This full-automatic flexographic printing machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.
·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·All gaps between cylinders and rollers are computerized and/or motorized control.
·Vacuum transfer system used in all printing sections.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.
·Able to facilitate the production management.
Corrugated Board Printing Machine Specifications：
T:11659x4240x3200
F:12079x4240x3200
T:11659x4800x3200
F:12079x4800x3200
T:13015x4400x3500
F:13550x4400x3500
T:13015x4800x3500
F:13550x4800x3500
T:13015x5220x3500
F:13550x5220x3500
T:14021x5220x3500
F:14071x5220x3500
T:14021x5719x3500
F:14071x5719x3500
T:14021x6119x3500
F:14071x6119x3500
Data/Model
900x2000
900x2400
1200x2000
1200x2400
1200x2800
1600x2800
1600x3200
1600x3600
Printing Speed(m/min)
200
200
200
200
200
200
200
160
Max Machine Speed(pcs/min)
300
300
250
250
220
200
180
120
Max Feeding Size(mm)
880x2000
880x2400
1180x2000
1180x2400
1180x2800
1540x2800
1570x3200
1570x3600
Min Feeding Size(mm)
280x640
280x640
320x700
320x700
320x700
420x760
420x760
420x760
Skip Feeding(mm)
1100x2000
1100x2400
1500x2000
1500x2400
1500x2800
1540x2800
1540x3200
1540x3600
Max Printing Area(mm)
800x2000
800x2400
1150x2000
1150x2400
1150x2800
1540x2800
1540x3200
1540x3600
Thickness of Printing Plate(mm)
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
Min Panel(mm) Slot Type L.
240x80x240x80
240x80x240x80
260x90x260x90
260x90x260x90
260x90x260x90
280x100x280x100
280x100x280x100
280x100x280x100
Max Slotting Depth(mm)
250
250
320
320
320
560
560
560
Max Thickness of Sheet(mm)
8
8
12
12
12
12
12
12
Dimension(LxWxH)
T
F
Corrugated Carton Digital Printing Machine Advantages:
1.CNC control system (Intelligent Control)
2.Environmental Protection and Energy Saving, use washable ink;
3.Satisfy the needs for exquisite printing in both sides, also be able to die-cut at the same time. It’s specially suit for products that have personalized or anti-fake requirements.
Our Team:
For the time being, we have more than 300 employees in our team, and have our own R&D, manufacturing, sales and after-sales service department, with our strict production and experienced construction team, taking the professional route and providing one-stop service for our customers.
