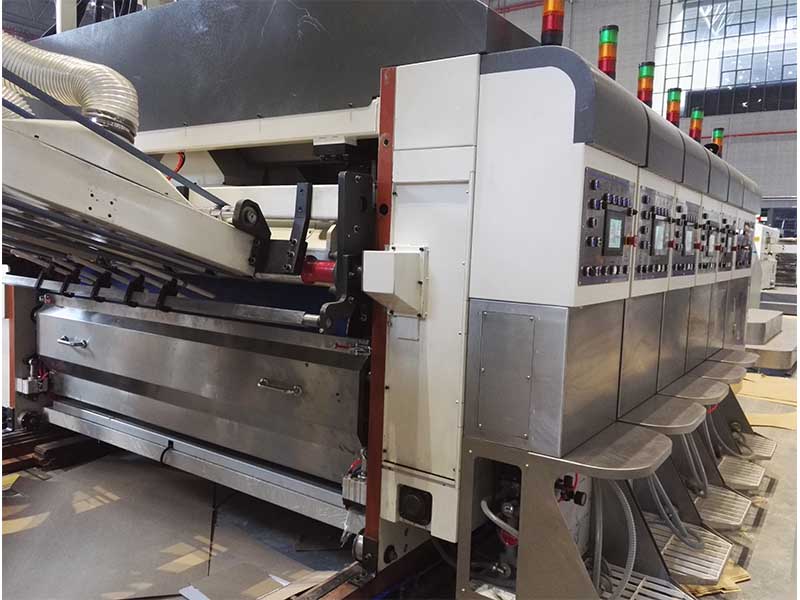

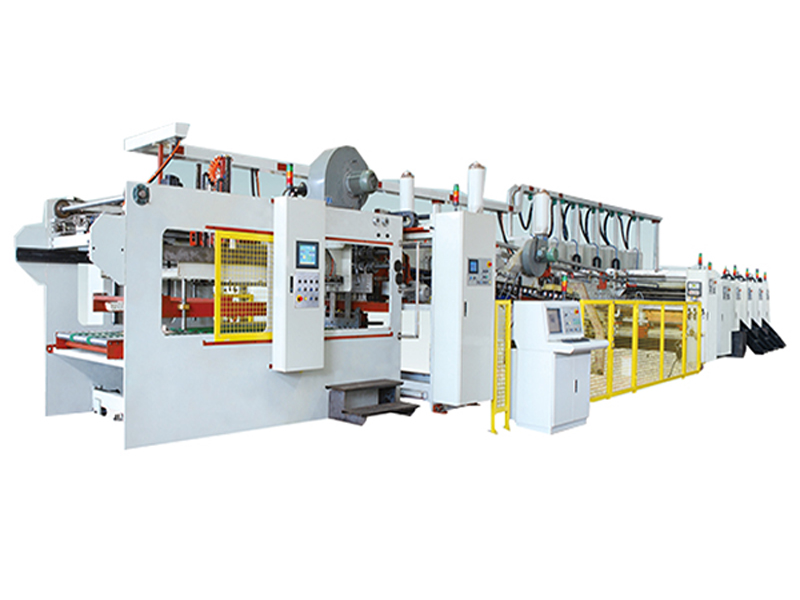

KL Corrugated Flexo Printing Machine Plant in Guangzhou
Corrugated Box Machine Features：
·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Computerized control,order setting in touch screen.
·The Folding Section adopts belt transfer system assisted with vacuum suction,to make best transfering and folding quality.
·The Gluing Section adopts U.S.A VALCO high speed auto-sensor glue spray system.
·The correction device in the Countering Section can conquer the fish-tail,makes the carton even.
·The quantity of bundle come out from the Counter Ejector can be set in touch screen.
·Able to shift order of the idle Printing Section under production.
·All electronic and pneumatic components are with European standards.
Corrugated Cardboard Flexo Printing Machine Specification：
T:18832x4750x2800
F:19552x4750x2800
T:18832x5150x2800
F:19550x5150x2800
T:20255x4870x2800
F:20975x4870x2800
T:20255x5270x2800
F:20975x5270x2800
Data/Model
900x2000
900x2400
1200x2000
1200x2400
Printing Speed(m/min)
200
200
200
200
Max Machine Speed(pcs/min)
350
300
250
250
Max Feeding Size(mm)
880x2000
880x2400
1180x2000
1180x2400
Min Feeding Size(mm)
280x640
280x640
320x700
320x700
Skip Feeding(mm)
1100x2000
1100x2400
1500x2000
1500x2400
Max Printing Area(mm)
800x2000
800x2400
1150x2000
1500x2400
Thickness of Printing Plate(mm)
7.2
7.2
7.2
7.2
Min Panel(mm) Slot Type L.
240x80x240x80
240x80x240x80
260x90x260x90
260x90x260x90
Max Slotting Depth(mm)
250
250
320
320
Min Folding Size(mm)
280x760
280x760
320x800
320x800
Max Thickness of Sheet(mm)
8
8
12
12
Dimension(LxWxH)
T
F
