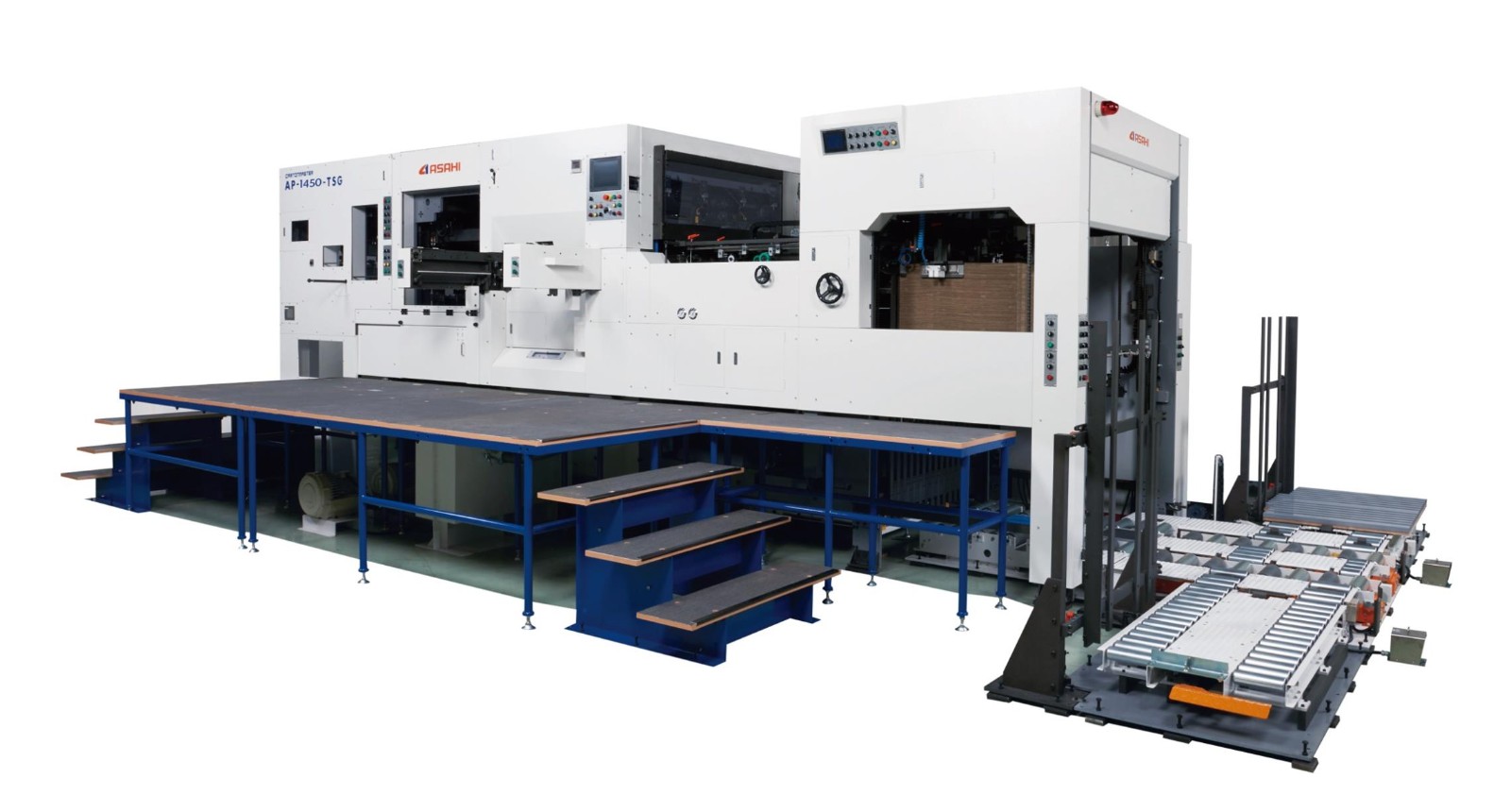

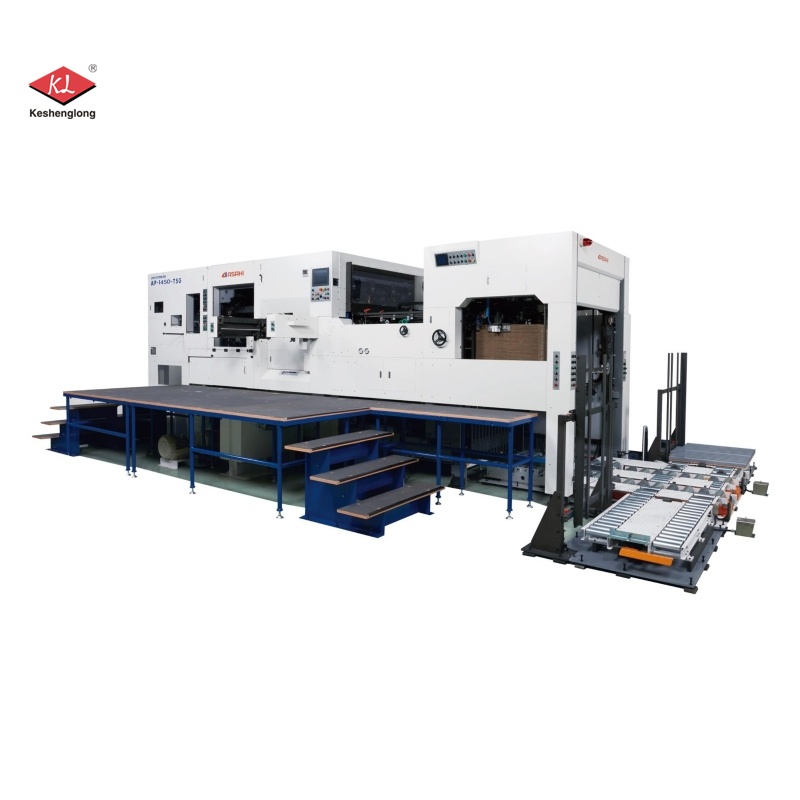

AP-1450 Automatic Die-cutting and Creasing Machine

Inquiry now

Details

AP-1450 Automatic Die-cutting and Creasing Machine

Model	AP-1450-TSG	AP-1450-AL	AP-1450-BSGL
Max. Sheet Size	1450X1100mm	1450X1100mm	1450X1100mm
Min. Sheet Size	600X500mm	600X500mm	600X500mm
Sheet Thickness Range	200～2000g/m2 cardboard,Laminated corrugated /corrugated board =0.3～4.5 mm	Laminated Corrugated board /corrugated board =1～9mm	Laminated Corrugated board /corrugated board =1～9mm
Max.Speed:	5500i.p.h	5500i.p.h	5500i.p.h
Feeding Type	Top suction feeding	4 shaft lead edge feeder + Servo drive belt positioning device	Bottom suction cup feeding + servo drive belt positioning device
Delivery Type	Deep pile delivery	Deep pile delivery / batch type delivery( Alternatively)	Deep pile delivery / batch type delivery( Alternatively)
Stripping Type	Standard three side waste removal	Spring thimble frame as optional	Spring thimble frame as optional
Min.Gripper Size	10mm（Pinch type）	10 mm（Pinch type）	10mm（Pinch type）
Max.operation pressure :	350tons	350tons	350tons
Required Power Supply	42kw（Main Motor 22kw）	42kw（Main Motor 22kw）	42kw（Main Motor 22kw）
Dimension(LWH)	9280x5035x3040mm	9280x5035x3040mm	9280x5035x3040mm
Machine Weight：	28tons	28tons	28tons

Features:

- Top suction TSG feeder
- Servo belt positioning section
- Equipped with standard three side waste removal frame
